Hello everyone.
I could use some help with the wiring. What I have:
A CC3200 Toniebox, an UART programmer and some cables.

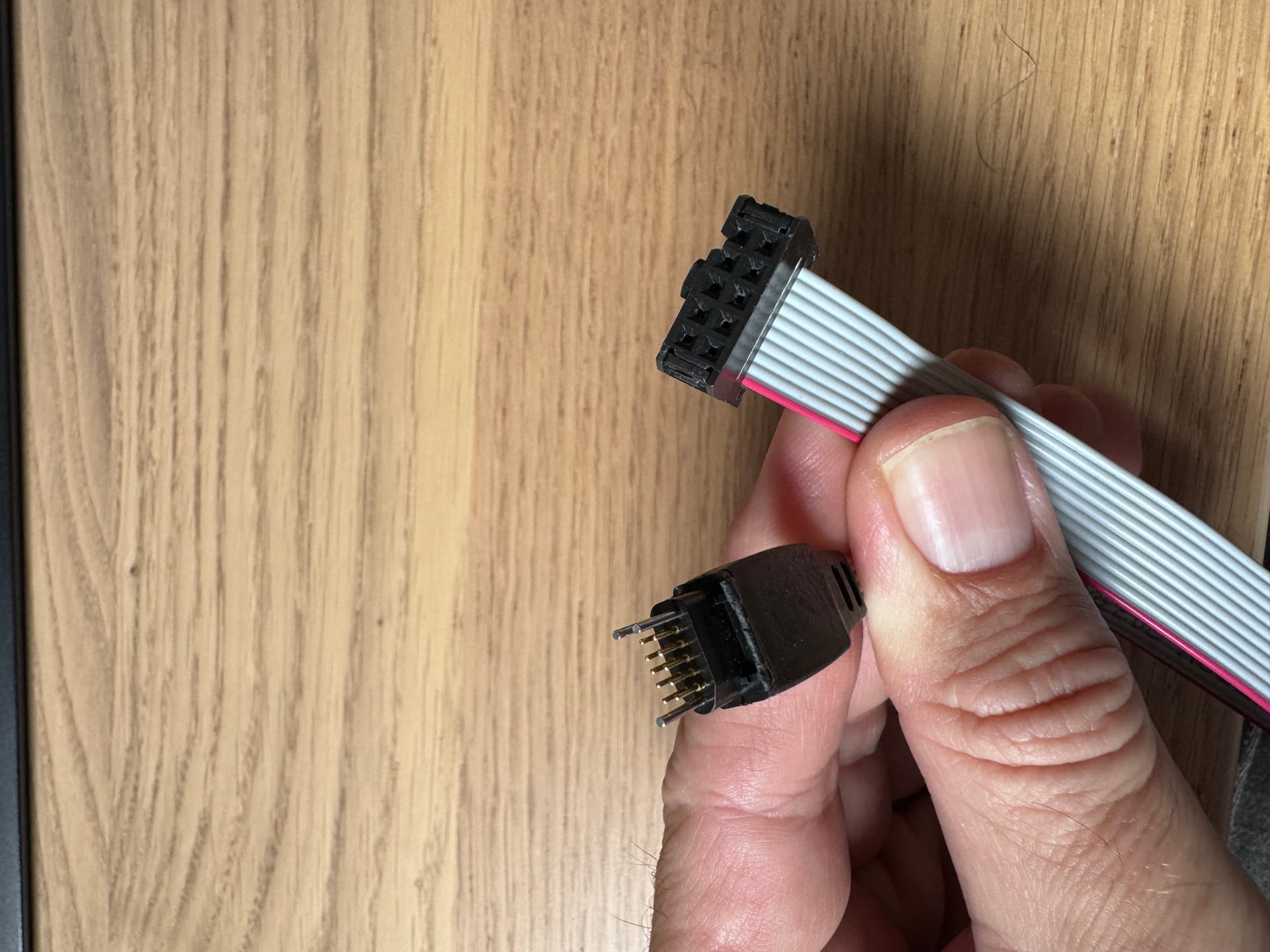

How do i wire the cables to the UART and the debug port? My cables are too thick to put them directly into the debug port. That’s why I bought the 10-pin cable. However, I’m too stupid. How do I identify the correct wire for TX,RX, etc?
I’m close to giving up
